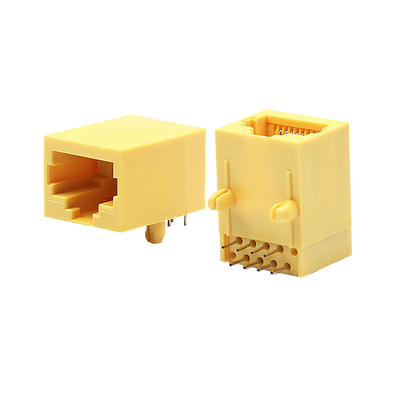

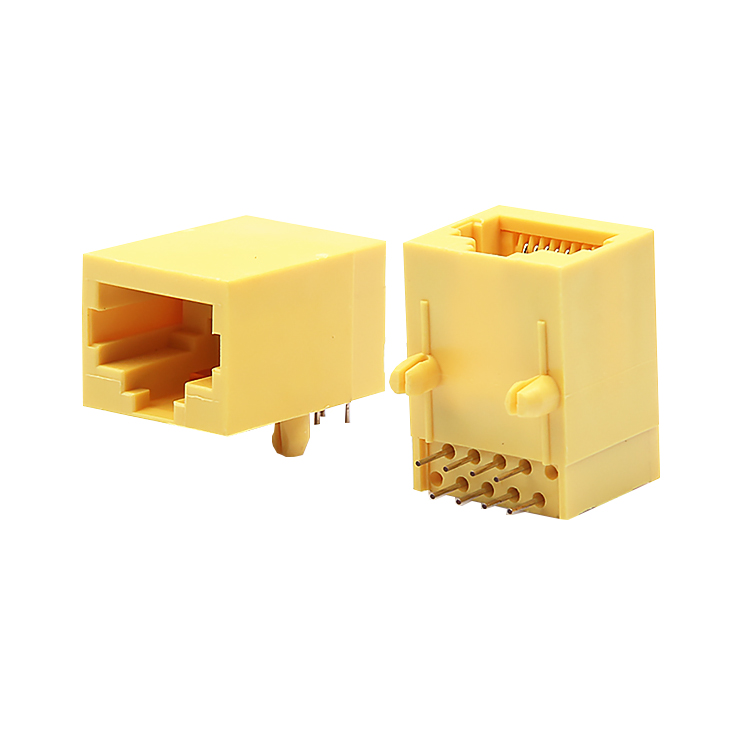

Characteristics | RJ45 to Ethernet 8P8C Single Port PCB connector Surface Mounting No Magnetics |
2)SMD,THT and THT with USB |
3)350μH min,OCL with 8mA bias |
4)Complies with IEEE 802.3 |
5)Extended temperature range 0°c~70°c ( or -40°c~+85°c ) available |
Operation/Application | ×DSL Modems |
EMbedded PC |
LAN Applications |
Hub,Router,Switches |
AVR,DVR |
Supply Ability | 20000PCS /Day |
Brand Name | ZXCNT |
Origin | Guangdong /China |
Number | ZXRJ-598-AY |
Connector Size | 20.5*15.2*13.1 |
Connector Style | Jack |
Cores Number | 8 |
Latch Orientation | Tape UP/Down |
Lead Free Solder Process | Wave solder capable to 265°c |
Lead Free Solder Process | Always was RoHS Compliant |
Applies To | Printed Circuit Board |
Environmental Conditions | Office / Premises |
Operating Temperature(°c) | 0°c~70°c / -40°c~+85°c |
Datasheets | E-mail Inquiry to sales@zxcnt.com |
