产品详情

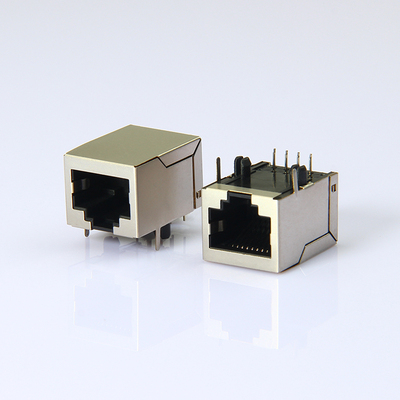

RJ45单口卧式无灯脚前插座

品牌: ZXCNT
型号: ZXRJ-598-WQ
端口配置: 单端口
LED 指示灯:
接合入口位置:
插座接口类型: RJ45
PCB 端接方法: 通孔-焊接
PCB 安装方向: 直角
产品详情


Characteristics

1)RJ45 to Ethernet 8P8C Single Port PCB connector Surface   Mounting   No Magnetics Shielded

2)SMD,THT and THT with USB

3)350μH min,OCL with 8mA bias

4)Complies with IEEE 802.3

5)Extended temperature range   0°c~70°c ( or   -40°c~+85°c )

available

Operation/Application

×DSL Modems

EMbedded PC

LAN Applications

Hub,Router,Switches

AVR,DVR

Supply   Ability

20000PCS /Day

Brand Name

ZXCNT

Origin

Guangdong   /China

Number

ZXRJ-598-WQ

Connector   Size

21.3*15.8*13.6

Connector Style

Jack

Cores Number

8

Latch Orientation

Tape UP/Down

Lead Free Solder Process

Wave solder capable to 265°c

Lead Free Solder Process

Always   was RoHS Compliant

Applies To

Printed Circuit Board

Environmental Conditions

Office / Premises

Operating

Temperature(°c)

0°c~70°c / -40°c~+85°c

Datasheets

E-mail Inquiry to sales@zxcnt.com
